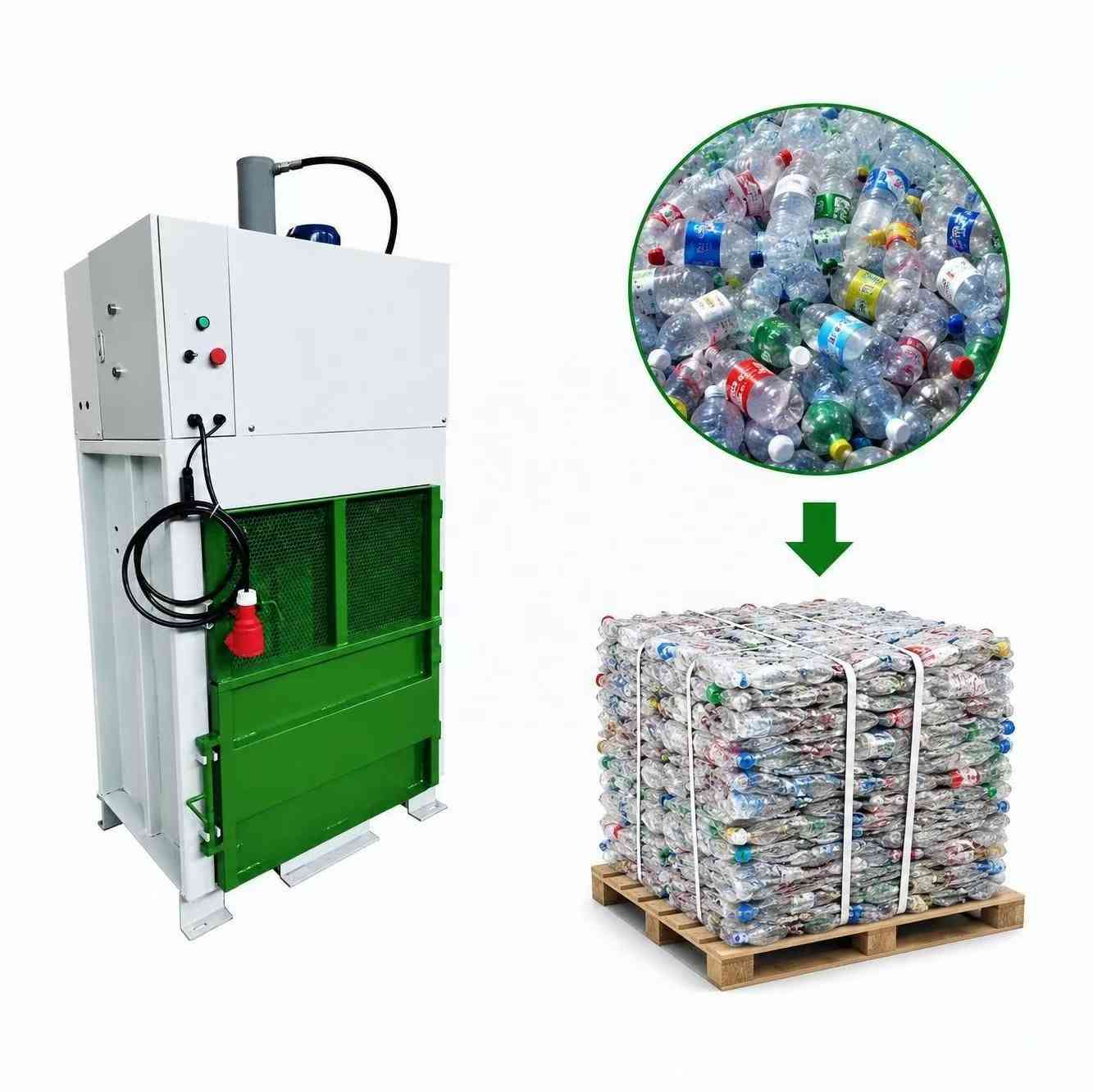

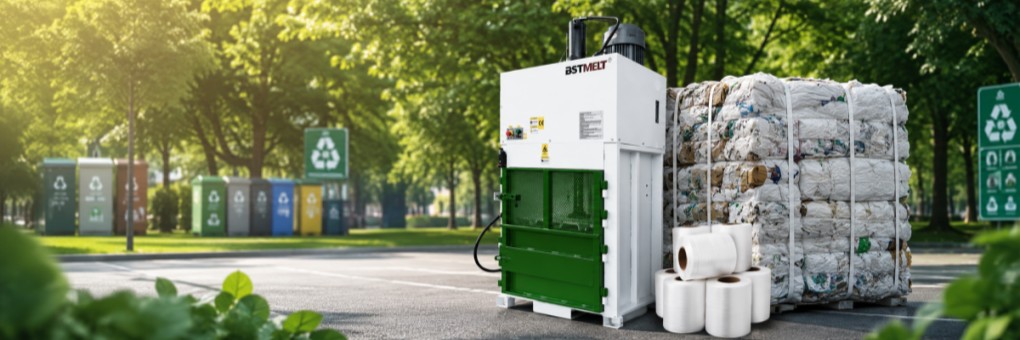

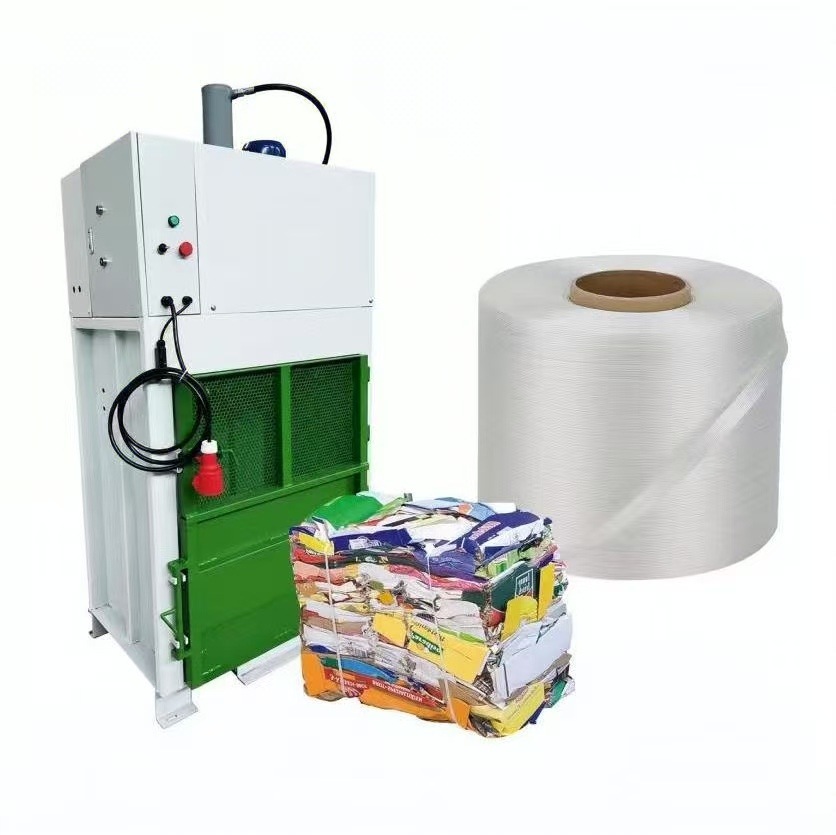

BM-VB-10T 10 Ton Vertical Hydraulic Baler
The BM-VB-10T Vertical Hydraulic Baler is designed for efficient compression of cardboard, paper, plastic film, woven bags and other recyclable materials. With a 10-ton compression force, it can reduce waste volume by up to 85%, helping businesses save storage space and improve waste handling and recycling efficiency.
Its stable hydraulic system and simple control panel make it suitable for recycling stations, supermarkets, warehouses, logistics centers and factories.
Key Features
10-ton hydraulic compression force
Up to 85% waste volume reduction
Suitable for cardboard, paper, plastic film and soft recyclable materials
Durable construction and stable operation
Compact vertical design for efficient space utilization
Low maintenance requirements
Product Specifications
| Item | Specification |
|---|---|
| Model | BM-VB-10T |
| Rated Pressure | 10 Ton |
| Voltage / Frequency | 380V / 50Hz / 3 Phase |
| Motor Power | 3 kW |
| Compression Stroke | 700 mm |
| Feed Port | 810 × 440 mm |
| Feed Height | 720 mm |
| Bale Size | 800 × 600 × 600 mm |
| Machine Dimensions | 1050 × 720 × 2100 mm |
| Machine Weight | 500 kg |
| Noise Level | 75 dB |
BM-VB-10T provides a practical and reliable solution for medium-volume waste compression and recycling applications.
